TPE angular drain with round spigot L500mm - diameter 80 mm
The angular roof drain with round exit spigot is provided with a 500mm long drain spigot which could be easily made longer simply by using a standard plastic pipe.
FEATURES
- Predisposed for the insertion of a “connector”
- Shank lenght 500 mm
- Reinforced edge
- “Dovetail” bas-relief to facilitate the attachment of the cast bitumen
- Radiused 90° corner element
- Predisposed for the installation of a leaf-guard

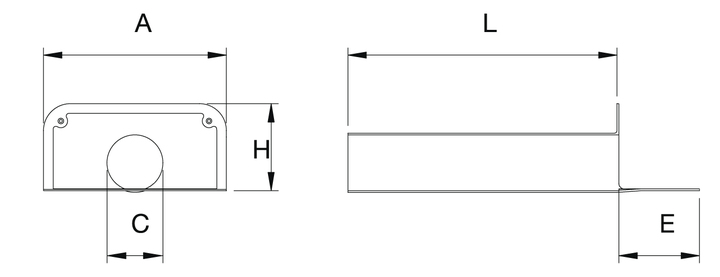

| For pipes diameter | 80 mm |
|---|---|
| A | 340 mm |
| C | 80 mm |
| E | 150 mm |
| H | 133 mm |
| L | 500 mm |
| Code | Type | Pcs (Box) | Pcs (Pallet) |
|---|---|---|---|
| A045500080 | TPE roof drain | 8 | 80 |
Specifications
| MATERIALS | Thermoplastic elastomer (thermoplastic rubber) |
| APPLICATIONS | Torch-on application |
| COMPATIBILITY | Bitumen-polymer waterproofing membranes: elastomeric, elastoplastomeric, plastomeric |
| COMPATIBILITY | Oxidized bitumen, cold liquid membrane, two-component cement |
| COMPATIBILITY | Polyurethane and epoxy resins |
